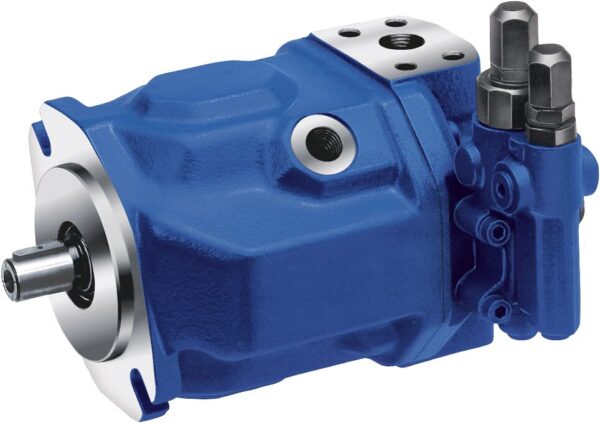

Bosch Rexroth Axial-Piston Pump A10VSO140 DFR1/31R-VPB12N00 R910945253
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The Bosch Rexroth Axial-Piston Pump A10VSO140 DFR1/31R-VPB12N00 R910945253 is a robust variable displacement pump for open circuits. Operating at 1500 rpm with a maximum working pressure of 280 bar, it delivers up to 210.0 l/min flow. Features include FKM sealing, ISO shaft key, and a weight of 65.4 kg.
Additional information
Specifications
| Paint/top coat | without |
|---|---|
| Test certificate | Without |
| Series | Series 3, index 1 |
| Productgroup ID | 9,10,11,12,13,14 |
| Rotational speed | 1500 |
| Shaft end | ISO shaft key |
| Control device | DR F controller X-T plugged 31/52 |
| Sealing material | FKM (standard) |
| Type of actuation | Variable pump, open circuit |
| Working pressure | 280 |
| Min. displacement setting | Variabel |
| Test certificate language code | Without |
| Version_2 | Standard |
| Max. displacement setting | Variabel |
| Product family | A10VSO |
| Classification society (external) | No |
| Paint/base coat | without |
| Max. flow | 210.0 |
| Min. flow | 0.0 |
| Direction of rotation | clockwise (w.view on shaft end) |
| Connector for solenoids | Without |
| Internal drain line | No |
| Through drive | Without through drive |
| Product (axial piston unit) | A10VS |
| Version_1 | Standard |
| Working ports | B flan l metr, S flan l metr |
| Mounting flange | ISO 3019-2 (metric), 4 hole |
| Pressure differential FR | 14.0 |
| Min. displacement | 0.0 |
| Size (displacement) | 140 |
| Max. displacement | 140.0 |
| Weight | 65.4 |
