Bosch Rexroth Axial Piston Pump A A10VSO100 DRS/32R-VSB32U00E *GOEU R902566712
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

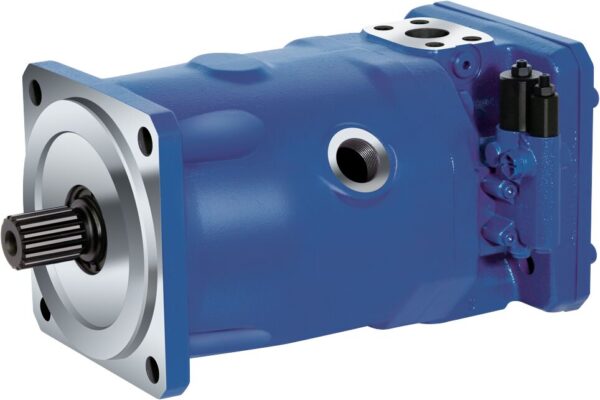

The Bosch Rexroth Axial Piston Pump A10VSO100 DRS/32R-VSB32U00E *GOEU R902566712 is a high-performance variable displacement pump suitable for diverse hydraulic systems. Featuring a splined shaft and ISO 3019-2 mounting flange, it operates at 1500 rpm with a maximum pressure of 280 bar, delivering up to 150.0 l/min flow reliably.
Additional information
Specifications
| Version_1 | default |
|---|---|
| Version_2 | default |
| Product family | A10VSO |
| Actuation type | Variable displacement pump, open circuit |
| Nominal size (displacement volume) [cm³] | 100 |
| Control and adjustment device | DR F Regulator XT closed 32/53 |
| Model series | Series 3, Index 2 |
| Direction of rotation | right (view of shaft end) |
| Sealing material | FKM (standard) |
| Shaft end | Splined shaft |
| Mounting flange | ISO 3019-2 (Metric), 4 hole |
| Working connections | B Fla s metr, S Fla s metr PCV |
| Drive-through | Universal through drive |
| Plug for magnets | Without |
| Speed [rpm] | 1500 |
| Operating pressure [bar] | 280 |
| Max. displacement volume [cm³] | 100.0 |
| Setting max. displacement volume | fix |
| Min. displacement volume [cm³] | 0.0 |
| Setting min. displacement volume | fix |
| Max. flow rate [l/min] | 150.0 |
| Min. volume flow [l/min] | 0.0 |
| Internal leakage line | No |
| Pressure difference FR [bar] | 14.0 |
| Acceptance company (external) | No |
| Test certificate | Without |
| Language code for test certificate | Without |
| Paint/primer coat | without |
| Paint/topcoat | without |
| ATEX protection class | without |
| Weight [kg] | 55 |
