Product Description

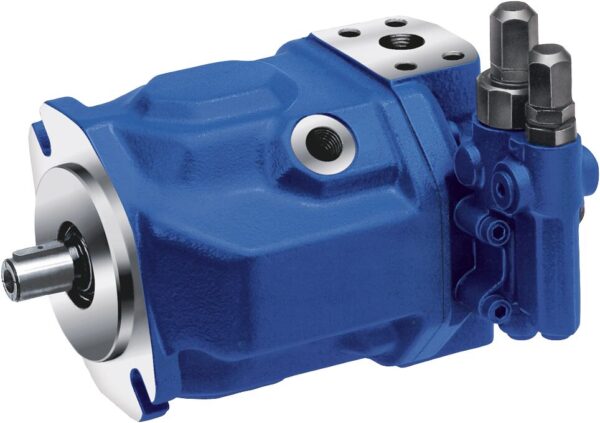

The Bosch Rexroth Axial-Piston Pump A10VSO 45 DFR1/31R-VPA12N00 R910967365 is a variable displacement pump designed for open circuits. It features FKM sealing, ISO shaft key, and operates at 1500 rpm with a maximum working pressure of 280 bar. With a displacement of 45 cm³, it delivers a maximum flow of 67.0 l/min and weighs 23.5 kg.
Additional information
Specifications
| Version_1 | Standard |
|---|---|
| Version_2 | Standard |
| Product family | A10VSO |
| Type of actuation | Variable pump, open circuit |
| Size (displacement) [cm³] | 45 |
| Control device | DR F controller X-T plugged 32/53 |
| Series | Series 3, index 1 |
| Direction of rotation | clockwise (w.view on shaft end) |
| Sealing material | FKM (standard) |
| Shaft end | ISO shaft key |
| Mounting flange | ISO 3019-2 (metric), 2 hole |
| Working ports | B flan l metr, S flan l metr |
| Through drive | Without through drive |
| Connector for solenoids | Without |
| Rotational speed [rpm] | 1500 |
| Working pressure [bar] | 280 |
| Max. displacement [cm³] | 45.0 |
| Max. displacement setting | Variable |
| Min. displacement [cm³] | 0.0 |
| Min. displacement setting | Fix |
| Max. flow [l/min] | 67.0 |
| Min. flow [l/min] | 0.0 |
| Internal drain line | No |
| Pressure differential FR [bar] | 14.0 |
| Classification society (external) | No |
| Test certificate | Without |
| Test certificate language code | Without |
| Paint/base coat | Without |
| Paint/top coat | Without |
| Weight [kg] | 23.5 |
