AIS TESTER M1

Specifications

• Supports any AIS Class A and Class B station
• Carrier frequency measurement in the range of 156-162MHz with an accuracy of ±99Hz
• Supports pilot plug and external sensors
• Internal database for storing up to 10 test results
• Easy connection to PC, laptop, or notebook for data processing
• User-friendly desktop application for Windows and Mac OS for database storage, review, processing, and printing test reports
• Long-life batteries that are easy to replace
• Easy recalibration without needing to return to the factory
• Comes with a 2-year warranty

AIS Allows To

• Measure AIS frequencies (on channels 1, 2)
• Measure or estimate the AIS transmitted power (on channels 1, 2)
• Receive and decode the AIS messages
• Send the data to AIS stations
• Pass the DSC polling information (channel 70)
• Check AIS answer to the so-called “virtual vessel”
• Simulate NMEA data transmissions
• Simulate AIS data transmissions, such as ship’s name, position, length, course, speed, power, and beam
• Transmit and receive the DSC messages of different types for VHF stations
• Check the AIS-SART operation facilities
• Receive the data from pilot plug or external sensors

Dimensions

AIS Tester is a professional equipment for surveyors to provide mandatory annual testing of the Class A and Class B AIS mobile stations and AIS-SARTs. AIS Tester is manufactured under standards and recommendations ITU-R M-1371-3, M.1371-5 (02/2014) and IEC 61993-2 and able to operate on AIS Channel 1 (ch87B), AIS Channel 2 (ch88B). And thus, this tool can provide checking of any Automatic Identification System. Standard set is shipped in the carton box. Watertight & crushproof plastic case is available for ordering at additional cost.

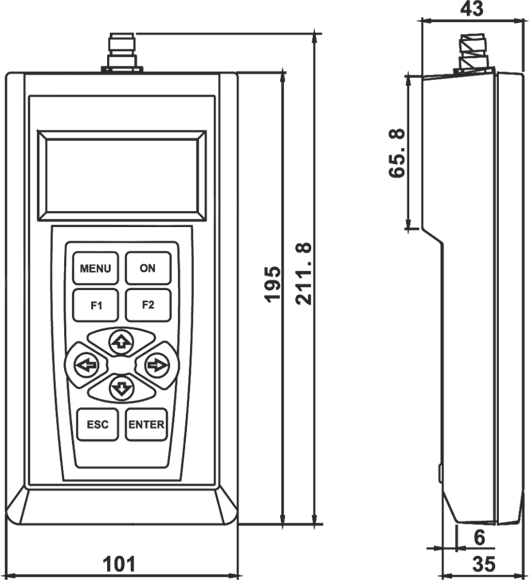

Dimensions Diagram
