9GHZ SART TESTER STU-1

Contact us for Pricing
Category: Tag:
  • Payment by invoice possible
  • Not currently in stock, contact us for factory lead times
  • Payment by invoice possible
  • In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
  • Del Rey is proud to be the exclusive distributor of Waagene products
  • Payment by invoice possible
  • Low quantities typically kept on hand; please contact us for availability at lead time
  • Authorized MiniBOOSTER distributor & hydraulic excellence partner

Product Description

The SART Tester STU-1 is designed to provide accurate, independent validation of the operation of any 9GHz Radar SART in accordance with the requirements of IMO Resolution A.802(19) and SOLAS – 74/88. The STU-1 performs quick checking of the SART parameters and provides a conclusion whether it has passed the test and can be used as a reliable rescue instrument in an emergency situation. The Tester is portable and easy in use. It is far more effective and reliable than the primitive self-test function offered by any SART.

Additional information

Specifications

  • Fast check to ensure the 9GHz Radar SART will operate in an emergency
  • Fast passed/not passed test
  • Audio-control of the sweep signal presence
  • Signal level measurement
  • Checking the signal in the frequency range of 9140…9560 MHz
  • Number of sweeps in the graph view
  • Response signal duration
  • Distance from SART across the radial line on the radar screen
  • Automatic creation of a test report. Windows/Mac OS supported

Dimensions

The STU-1 is designed to provide accurate, independent validation of the operation of any Radar SART in accordance with the IMO requirements and classification societies. This test tool is portable and easy in use. It is far more effective and reliable than the primitive self-test made with help of the ship radar.

Dimensions of main unit: 117 x 79 x 25 mm
Weight of main unit: 105 g
Dimensions of carton box: 200 x 120 x 50 mm
Total weight in carton box: 250 g

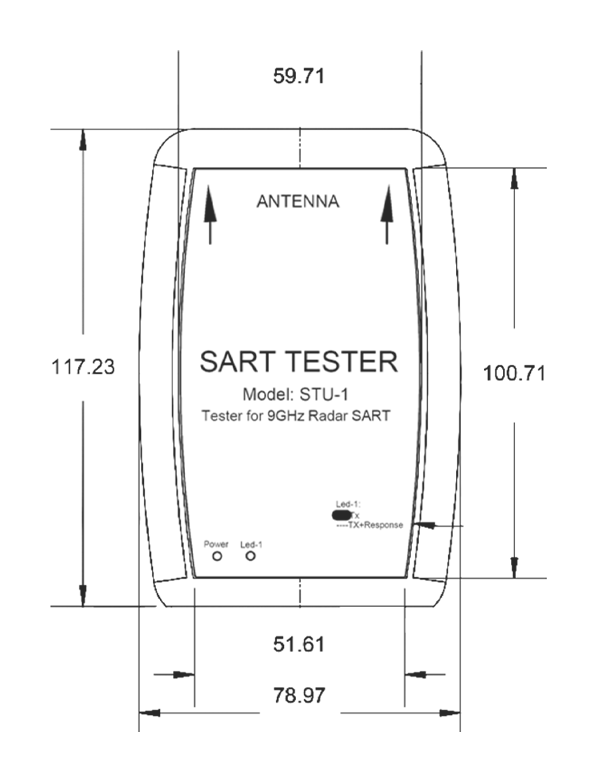

Dimensions Diagram

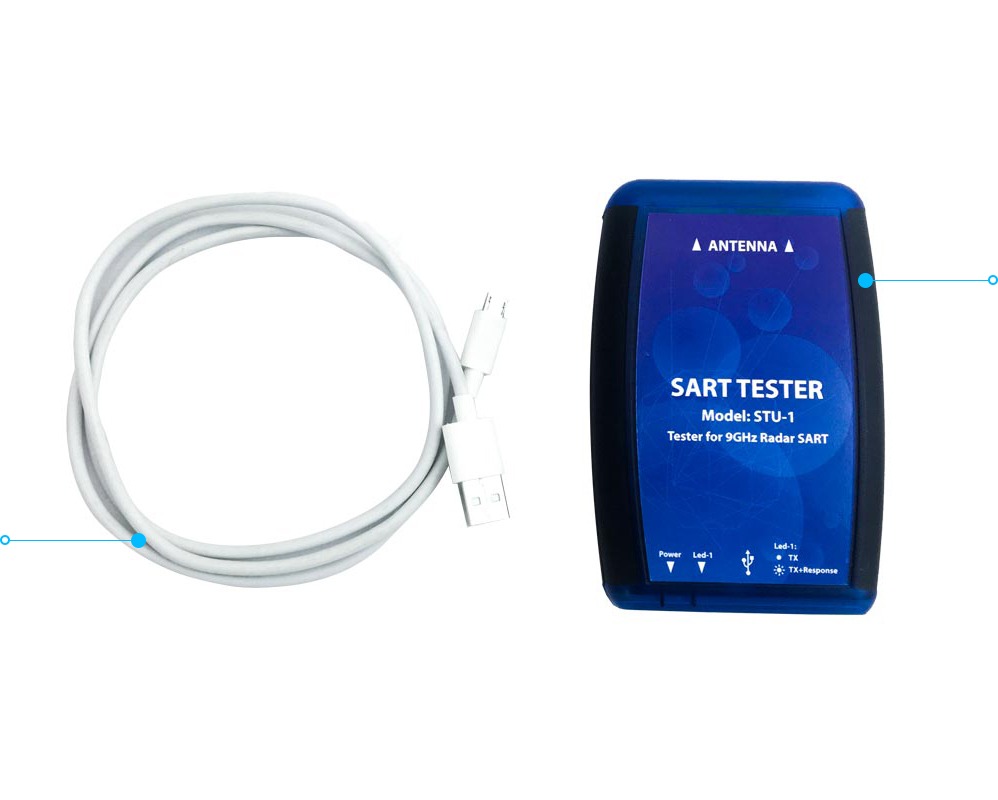

Produce Overview

  • The SART Tester STU-1 is designed for marine radio surveyors and classification societies. The device allows ensuring that a 9GHz SART meets all the appropriate performance requirements.
  • The SART Tester measures signal level and duration, calculates the distance in nautical miles from the SART across the radial line on the radar screen, verifies that the signal is in the frequency range of 9140…9560 MHz, and also counts the number of sweeps and shows them in the graph view. The testing is performed through the broadcast.
  • To begin measurement, one should connect the STU-1 to a laptop or PC and run the software. The test procedure is managed with the help of the software, and the measured results are immediately displayed on the screen.
  • After the measurement is done, all the results can be saved and automatically input to a test report. The test report is generated by the software application in correspondence with the IMO requirements.
