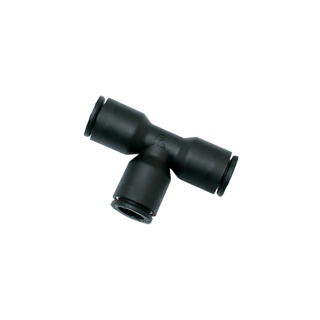

3104 10 08 Unequal Tee D10-D8 for Efficient Flow Distribution
$32.80
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The 3104 10 08 Unequal Tee is designed for specific piping applications where a branch connection needs to be made at a different size than the main pipeline. This tee features a reducing size from D10 to D8, allowing for efficient flow distribution in pipelines with varying dimensions. Crafted from high-quality materials, this tee ensures durability and longevity in various industrial settings. Its precise design and engineering guarantee a secure and leak-free connection, providing peace of mind for users. With easy installation and maintenance, this unequal tee is suitable for a wide range of projects, including plumbing, HVAC systems, water treatment plants, and more. Enhance your piping system’s efficiency and performance with the 3104 10 08 Unequal Tee, a reliable and versatile component for your piping needs.
Additional information
‘
Product Specifications
Part Number | 3104 10 08 | Brand | Parker |
Quantity per Box | 10 | Configuration | Tube to Tube |
Division | Low Pressure Connectors Europe Division | Gripping Ring Material | STAINLESS STEEL |
Body Material | TECHNICAL POLYMER | O-Ring Material | NBR |
Media | Compressed Air, Other fluids: please consult us | Specifications Met | ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI : 1907/2006 (REACH) |
Maximum Operating Pressure | 20 barg | Vacuum Pressure Rating | 755 mm-Hg |
Shape | Tee | Connection 2 Size | 8 MM (O.D) |
Connection 1 Size | 10 MM (O.D) | Product Style | Push-in Fitting |
Maximum Operating Temperature | 80 ?C | Minimum Operating Temperature | -20 ?C |
Weight | 0,014 kg |
